Clean Storm Momentary Push Button Switch On Normally Off - J032-3 - Switches

Clean Storm J032-3, Momentary Push Button Switch, ON / Normally Off Electric For AC and DC application [J032-3]

Click to enlarge

Your Price:

Quantity	1+	2+	4+	8+	16+
Price for each	$15.38	$13.82	$13.54	$13.27	$13.00
Your savings	-	10%	12%	14%	15%

Part Number: J032-3
Quantity:
Estimated shipping cost: $ 8.00

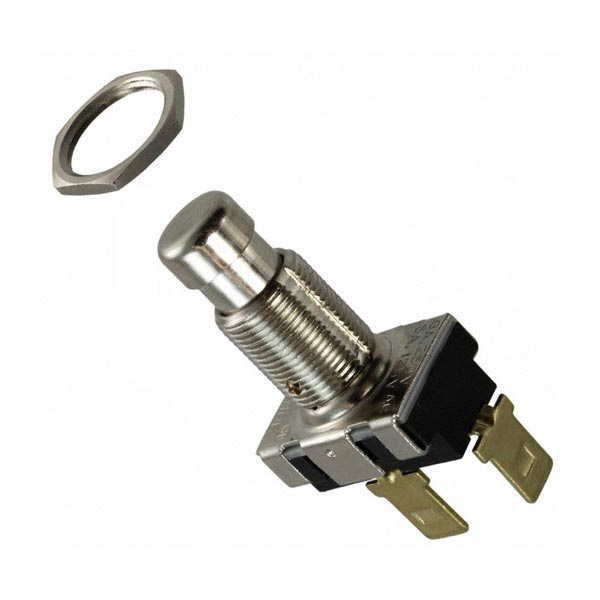

White Magic and Clean Storm: Momentary Push Button Switch
Normally off and Momentarily ON (closed circuit)
plastic button momentary switch

Used on many truck mounted carpet cleaning machine to bypass the safety over rides.

Features:

Current Rating: 15A@ 125V AC, 10A@ 250V AC, can also be used in 12-36 volt applications

Dielectric Strength: 1000V RMS Min.

Contact Mechanism: Slow-Make, Slow-Brak Butt Contact

Contact Material: Copper Alloy/Silver Plate

Terminal Type: .25 EZ Disconnect

Specifications:

Type: SPST-NO (single pole single throw normally open circuit)

Action: (Off) - Push On

Actuator Cap: Metal or Plastic (default is metal now but subject to change without notice)

Spring loaded push button
Can pass through or mount in a 7/16" hole with a wall thickness thinner than 7/16."

Photo might not be 100 % accurate but close. Some switches have only two 1/4" wide terminals.

This is used on the following piece of equipment below:

Clean Storm 6720 Cleaning Units 2100 psi 3.5 gpm Cold Electric Pressure Washer 2 Power Cords 115 Volts

Power Joiner Step Up Inverter Electric Car Charger Converts Dual 20 amp 115 Volt outlets to allow 230 Volt 3 wire 20 amp Use (Reverse10-30R)

Power Joiner Step Up Inverter Electric AC Converts Dual 20 amp 115 Volt outlets to allow 230 Volt 3 wire 20 amp Use [Reverse6-20R] Ford Evos Hybrid Level 2

Steambrite processes shipments daily by Fedex, UPS, and USPS (for small packages), as well as a using a variety of freight carriers for oversized/palletized shipments. While the Steambrite website DOES reflect what is available for purchase, it does NOT reflect available inventory at our local warehouse (San Antonio, TX). Special order, or custom build items may take up to 30 days to arrive, but orders shipped from within Steambrite's warehouse inventory are generally processed and shipped in 2-5 business days. Equipment small enough to be sent by ground should typically arrive within 3-5 business days after shipment. Oversized shipments could take in excess of 6-8 working days to arrive after shipment, and ground shipping times are not guaranteed.
Clean Storm J032-3, Momentary Push Button Switch, ON / Normally Off Electric For AC and DC application [J032-3]

Click here for our full shipping policy. Specifications are subject to change without notice.
Steam Brite Inc shall have no obligation or liability to buyer whether arising in contract (including warranty) tart (including active, passive or imputed negligence) other otherwise for loss of use, revenue or profit, or any other incidental or consequential damages with respect to any non-conformance or defect in any items provided here under. Display images are for reference only, note that all purchases are fulfilled by the part number ordered. You our customer agrees to indemnify Steam Brite Inc and to hold it harmless from and against any and all claims, cost, liabilities, damages and expenses, including attorney's fees, resulting from personal injury or property damaged caused by the Products.
Warranty Disclaimer: Buyer's sole and exclusive remedy for defects in the products shall be as provided in the manufactures's warranty and any other rights provided by law against the manufacturer. Steam Brite, Inc makes no other than as specified in this agreement. All other warranties, express or implied, including but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are hereby disclaimed.

This product was added to our store on Monday 19 January, 2009.

Product Datasheet
