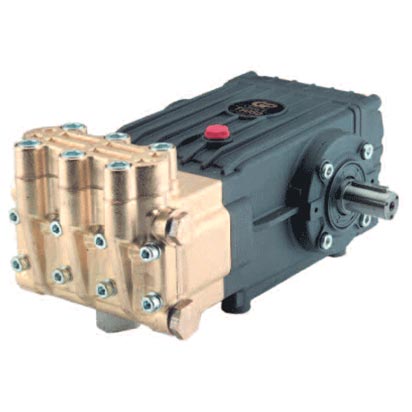

General Pump T5050
5gpm/
5000psi/
1800rp -
Factory Brochure
Also marketed under: Karcher 8.702-695.0 ; GPT5050
Features
Forged brass manifold that's twice as strong as cast
Stainless steel piston guides
Unique "in-line" valve system for easy access and durability
Small bore combined with long stroke for maximum efficiency
Thermally bonded ceramic coating rated to 10,000 PSI
Proven crankcase and bearing design
Pump Model T5050
Maximum Volume 5.0 GPM
Maximum Discharge Pressure 5000 PSI
Maximum Pump Speed 1845 RPM
Maximum Inlet Pressure 30 - 125 PSI
Maximum Inlet Vacuum 9 ft. water (7.9 in. Hg)
Bore .630 in. / 16 mm
Stroke .748 in. / 19 mm
Crankcase Oil Capacity 40.6 oz.
Maximum Fluid Temperature 1650 F
Inlet Port Thread (2) 1/2-14 BSP-F
Discharge Port Thread (2) 3/8-19 BSP-F
Shaft Diameter .945 in. / 24 mm
Weight 41 lbs.
Dimensions 14.2” x 9.2” x 6.9”
Shipping 16" X 11 X 11 45 lbs
Available in left-handed "L" version
