20180713 for only $2,546.30 - Steambrite's price on the 14+ Inch Carpet Wands - 20180713 extractor, Equipmentcarpet cleaning equipment, Equipment flood restoration, Equipment carpet cleaning machine,

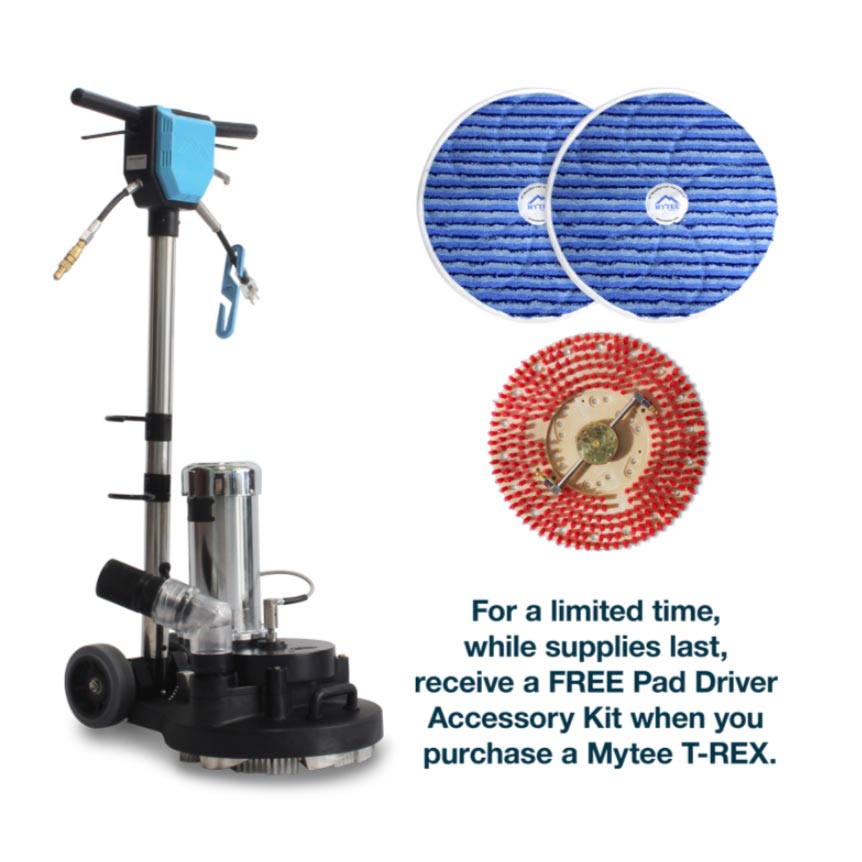

 Mytee TRex Rotary Extractor Power Wand with free pad driver and bonnet set.

Optional Extended Warranties for Equipment Valued up to 7499.99 Available Warranty WITH YOUR PACKAGED PURCHASE.

Optional Mytee A129 Brush Add On for Full Size TREX Wand FREE Shipping

The T-REX™ is the Ultimate in Total Rotary Extraction.

Say goodbye to traditional wand carpet cleaning. With Mytee’s high performance rotary extraction tools, carpet cleaning has never been easier. The rotary action of the cleaning head does all the work, meaning less user fatigue and more consistent results in a fraction of the time that it takes to use a wand.

The powerful 1 HP motor on the T-REX™ allows you to clean faster and deeper. It also works to easily lift embedded soil and restore the carpet surface. Impress customers and build loyalty with superior cleaning results. Add the Mytee® T-REX™ to your cleaning arsenal today.

The T-REX™ features:

• 15″ Cleaning path
• 160 RPM
• 6 vacuum slots for quick drying times
• High solution flow; 6 jets.
• Powerful 1 HP electric motor
• Ambidextrous safety switch – prevents damage to near by objects
• Elevated, easy handle adjustment
• Clear swivel tube
• 2″ Cuff-Lynx™ hose connection with retainer keeps vacuum hose from getting in the way
• Pigtail with detachable 25′ lighted power cord
• Front handle for easy pick up
• 6″ wheels

Includes:

•

  FREE pre-installed carpet brushes, valued at $199! (Part #A129)
• Wrench for easy hub removal
• Storage cover to protect head when not in use
• Stainless steel cleaning head (Part #A102)
• 4 oz bottle of Teflon Lubricant (Part #PH648)

Benefits of Total Rotary Extraction:

• Clean more surface area in less time, which means more jobs and more money. With over 960 cleaning passes per minute, the T-REX™ machine cleans faster and better.
• Deep clean heavily soiled carpets in less time
• Less user fatigue for consistent cleaning results
• Lift embedded soil
• Restore carpet surface
• Faster drying times
• Impress customers with superior cleaning results and gain repeat customers

Technical:

Please note that because of the high water flow use, we recommend that you consider a truck mounted extractor or portable carpet cleaning machines that are auto fill and auto dump.  Then because the machine is hooked to the sink, you need a higher performance machine with at least Dual 3 Stage vacs, Triple 2 stage vacs, quad 2 stage vacs, or dual 6.6 vacuums to run the longer hose runs.  Theses would be a recommended 25+ amp vacuum system. Please do not try to operate 14" and 15" wide wands with machines that have 5 stages or less of vacuum.

Note:  Because this wand has 6 jets on it, most machines will experience a pressure drop between pump standby pressure and use pressure.  Example:  Pressure gauge might be set on 450 psi but when you squeeze the trigger on the tool, the use pressure might fall under 225 psi.   Suction feed machines will experience a larger pressure drop than pressure feed machines.  If you own a suction feed auto fill extractor, you can convert it to pressure feed if you want to improve cleaning results.  All makes and brands of portables can be converted from suction feed to pressure feed. .





Both these parts are not missing rather been removed from the box as they are no longer included.  So far the last two customers that have purchased this wand have both called SteamBrite and we have already confirmed this is not a packaging error.  Your 2" truckmount or portable vacuum hose it to hook direct to the wand.  No leader hose with vacuum relief is included or needed.

The E363 potentiometer, slide (speed control knob) has been removed from the design.


More Power Wands HERE

• T-Rex Parts List Sept. 2014 - Present
• T-Rex Parts List May 2014 - Aug. 2014
• T-Rex Parts List Dec. 2013 - April 2014
• T-Rex Parts List Sept. 2013 - Dec. 2013
• Wiring Schematic
• T-Rex Head Assembly March 2013
• T-Rex Flyer

Owners Manual

Leo Griggs Carpet Service, Oxnard California 93035:

"I have cleaned carpet for years and trex is the best power head ever, saves time, and does a great job!"

Factory provided Mytee A103 T-Rex Pad Driver

Clean Storm 20130329 Pressure Feed Auto Fill Conversion Kit (Self Install) 20130329 For carpet cleaning machines

Cuff AH46 : 1.5in Threaded X 2.0in Slip Vacuum Hose Cuff  If you want to use a more flexible 1-1/2" vacuum hose leader, flare the cuff end back to 2" to connect to the Mytee TRex with this hose cuff

PMF FUFF2SW  2 Inch Hide A Hose Swivel Cuff  Run your extension cord inside of your vacuum hose for neater hose runs.

Clean Storm 12-6500-AFAD Carpet Cleaning Machine 12gal 500psi Dual 6.6 Vacs, Auto Fill 20gpm Auto Dump, M5achine Only  Example of 25 amp vacuum with auto fill and dump

Clean Storm Goliath SBM-G0-500H Set 15gal 500psi HEATED Four 2 Stage Vacs 14,000 BTU Heater Muffler Auto Fill, Pumper 65 ft Hose Set Wand, Carpet Cleaning Machine  Example of 30 amp vacuum with auto fill and dump.
