AR Pump RKA35G30E-F17 Pump: 3.5/3000 1750RPM [RKA35G30E-F17]

Click to enlarge

Your Price: $415.99
Part Number: RKA35G30E-F17
Quantity:
Estimated shipping cost: $ 22.00

AR Pump RKA35G30E-F17 Pump: 3.5/3000 1750RPM

Description

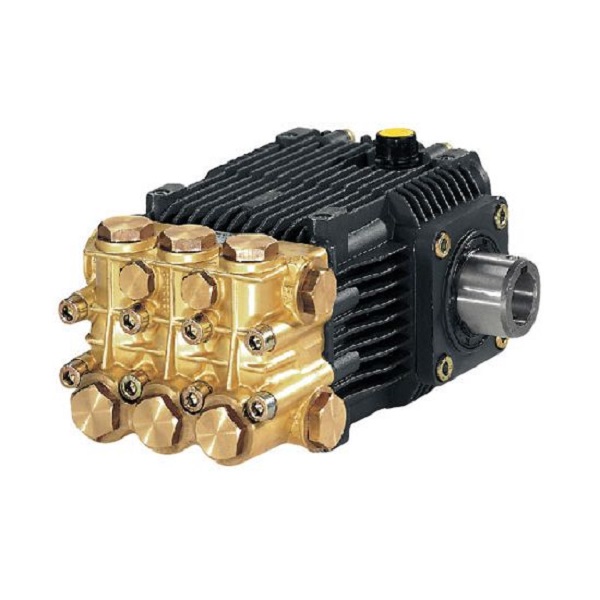

AR Annovi Reverberi Pressure Washer Pump RKA3.5G30E-F17 3.5 GPM @ 3000 PSI.

RKA3.5G30E-F17 Plunger Pumps are designed for a wide variety of high pressure washing applications. They are constructed of die-cast bodies and feature a forged brass head. Internal components include special thick solid ceramic plungers for long life and durability. Precision cast cooling fins are anodized for maximum heat dissipation. Oversized tapered roller bearings and the precision supports assure proper shaft alignment and maximum life. Valve cages of special designed Ultra-Form provide positive seating and extended life. One-piece connecting rods are either a special alloy aluminum or bronze oversized for strength and load disbursement. These RKA3.5G30E-F17 pumps are designed for gearbox , belt drive, or coupling drive systems, electric motor 182-184 frame driven systems, or gasoline engine driven systems.

Features

Manifold: High strength forged brass or nickel plated for long term use.
Bolts: Eight 8mm grade 8.8.
Plungers: A special thick solid ceramic for long life, strong durability and more resilience.
Crankcase: Precision die-cast, large cooling fins and anodized for maximum heat dissipation. Sight glass, fill and side and bottom drain plugs.
Bearings: Over sized tapered roller bearing for maximum life and load distribution.
Bearings Supports: Precision die-cast and machined to assure concentricity and alignment.
Valves, Seats and Springs: Stainless steel with specially designed Ultra Form cages to provide long life and positive seating.
Seals and V-Packings: Continuously lubricating for extended life.
Plunger Rods: Stainless steel construction for strength, no plating to scrape off, back-up and o-ring plunger sealing system.
Connecting Rods: One piece special alloy aluminum or bronze for higher pressure, over sized for maximum strength, load disbursement, and long life. Heavy pin area construction, for added load strength.

Specifications

Drive Type	Electric Motor (Direct Mount)
Max. GPM	3.5
PSI	3000
Max. Pump Speed	1750
Plunger Diameter	18mm
Shaft Diameter	1-1/8” Hollow
Inlet Size	1/2” F
Outlet Size	3/8” F
Max. Fluid Temperature	140° F
Oil Capacity	15 oz.
Weight	21.0
Manifold Material	Brass
Crankcase Material	Aluminum
Crankcase Stamp ID	5

OEM/Old Part Numbers

RKA35G30E-F17
RKA35G22E-F17
101864
8.702-584.0
87025840
